Proxy Agents

Overview

Proxy agents connect agents running on different buses. Unlike distributed agents (which all share the same bus), proxy agents bridge two isolated bus instances point-to-point. This is useful when:

You want to run an LLM agent on a separate server without shared infrastructure
You need fine-grained control over which messages cross the network
You’re connecting to a third-party service that hosts agents

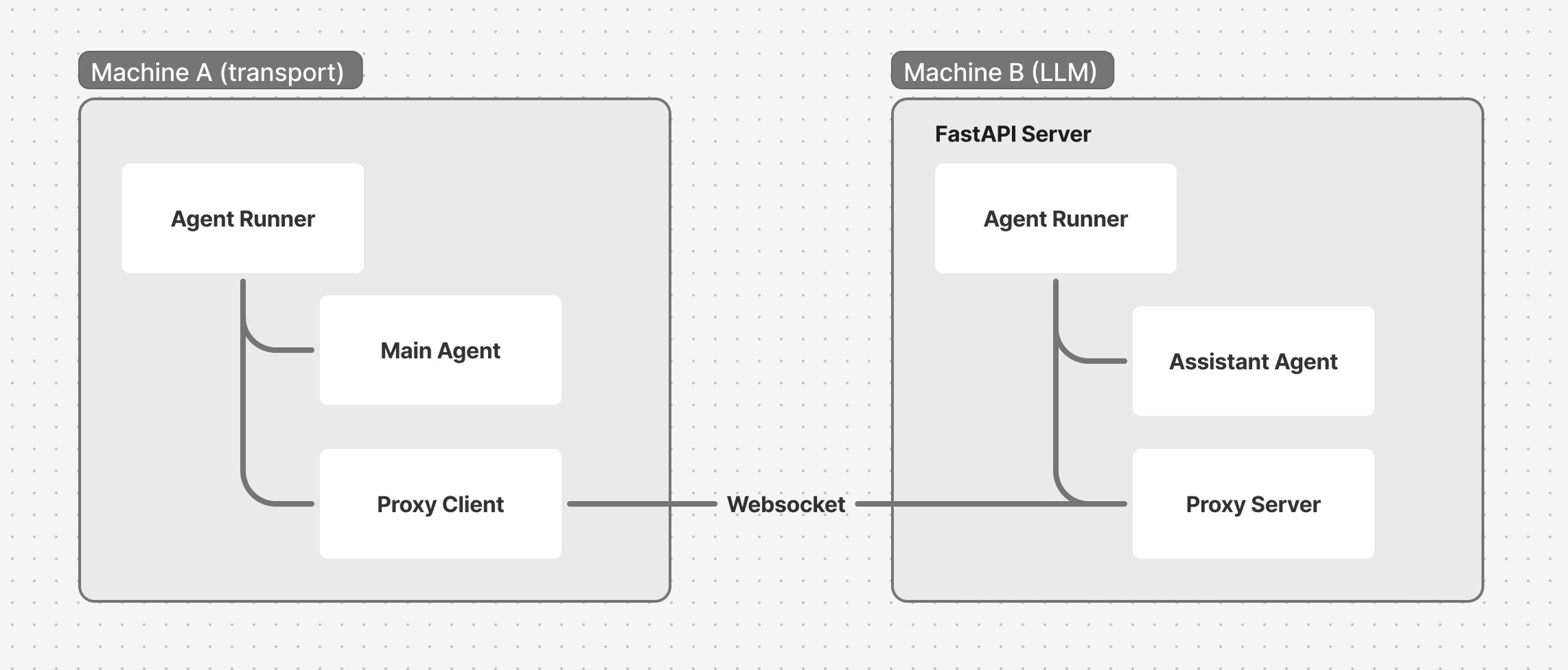

Architecture

Each side has its own AgentRunner and bus. The proxy agents relay messages between the two buses over a WebSocket connection.

Client side: WebSocketProxyClientAgent

The client connects to a remote server and forwards specific message types:

from pipecat_subagents.agents.proxy import WebSocketProxyClientAgent
from pipecat_subagents.bus import BusFrameMessage

proxy = WebSocketProxyClientAgent(
    "proxy",
    bus=runner.bus,
    url="ws://remote-server:8765/ws",
    local_agent_name="acme",         # Agent on this bus
    remote_agent_name="assistant",   # Agent on remote bus
    forward_messages=(BusFrameMessage,),
)
await runner.add_agent(proxy)

Parameter	Description
`url`	WebSocket URL of the remote server
`local_agent_name`	Name of the local agent that exchanges frames with the remote
`remote_agent_name`	Name of the remote agent to communicate with
`forward_messages`	Tuple of message types to forward across the connection
`headers`	Optional HTTP headers (e.g. authentication tokens)

The proxy connects when activated. Activate it when the client connects:

class MainAgent(BaseAgent):
    async def build_pipeline(self) -> Pipeline:
        @self._transport.event_handler("on_client_connected")
        async def on_client_connected(transport, client):
            await self.activate_agent("proxy")
        # ...

Server side: WebSocketProxyServerAgent

The server accepts WebSocket connections and creates a proxy for each session:

from fastapi import FastAPI, WebSocket
from pipecat_subagents.agents.proxy import WebSocketProxyServerAgent
from pipecat_subagents.bus import BusFrameMessage
from pipecat_subagents.runner import AgentRunner

app = FastAPI()

@app.websocket("/ws")
async def websocket_endpoint(websocket: WebSocket):
    await websocket.accept()

    runner = AgentRunner(handle_sigint=False)

    proxy = WebSocketProxyServerAgent(
        "gateway",
        bus=runner.bus,
        websocket=websocket,
        agent_name="assistant",        # Agent on this bus
        remote_agent_name="acme",      # Agent on remote bus
        forward_messages=(BusFrameMessage,),
    )

    assistant = AssistantAgent("assistant", bus=runner.bus)

    await runner.add_agent(proxy)
    await runner.add_agent(assistant)
    await runner.run()

Each WebSocket connection gets its own AgentRunner, bus, and set of agents. This isolates sessions from each other.

Message filtering

Proxy agents provide security through message filtering:

Only messages targeted at the configured agent names cross the connection
Broadcast messages (no target) are not forwarded
Local-only messages (BusLocalMessage) never cross
forward_messages controls which message types are allowed

This means internal bus traffic stays local. Only the specific message types you opt into are relayed.

Full example

Client (main_agent.py)

async def run_bot(transport, runner_args):
    runner = AgentRunner(handle_sigint=runner_args.handle_sigint)

    main_agent = MainAgent("acme", bus=runner.bus, transport=transport)
    await runner.add_agent(main_agent)

    proxy = WebSocketProxyClientAgent(
        "proxy",
        bus=runner.bus,
        url="ws://localhost:8765/ws",
        local_agent_name="acme",
        remote_agent_name="assistant",
        forward_messages=(BusFrameMessage,),
    )
    await runner.add_agent(proxy)

    await runner.run()

Server (assistant_agent.py)

@app.websocket("/ws")
async def websocket_endpoint(websocket: WebSocket):
    await websocket.accept()
    runner = AgentRunner(handle_sigint=False)

    proxy = WebSocketProxyServerAgent(
        "gateway",
        bus=runner.bus,
        websocket=websocket,
        agent_name="assistant",
        remote_agent_name="acme",
        forward_messages=(BusFrameMessage,),
    )

    @proxy.event_handler("on_client_connected")
    async def on_client_connected(proxy, client):
        logger.info("WebSocket client connected")

    @proxy.event_handler("on_client_disconnected")
    async def on_client_disconnected(proxy, client):
        await runner.cancel()

    assistant = AcmeAssistant("assistant", bus=runner.bus)
    await runner.add_agent(proxy)
    await runner.add_agent(assistant)
    await runner.run()

Running

# Terminal 1: Start the LLM server
python assistant_agent.py --port 8765

# Terminal 2: Start the transport client
python main_agent.py --remote-agent-url ws://localhost:8765/ws

Install the WebSocket extra: uv add "pipecat-ai-subagents[websocket]"

Proxy agents vs distributed agents

	Proxy Agents (different buses)	Distributed (same bus)
Topology	Point-to-point	Many-to-many
Session isolation	Each connection is isolated	All agents share a channel
Use case	Separate networks, third-party agents	Scaling agents across machines
